A systematic view on Developer Productivity and Transformation progress

How do we measure the productivity of developers? This is a riddle that I have been working on for a while (see this post). And how do we measure transformation success in the same context?

If we had good answers to these two questions things would become a lot easier for us in the DevOps community. At the DevOps Enterprise Summit 2022 I had many great conversations in the hallway track to get different perspectives (special mention to Hans Dockter and Bill Bensing for entertaining a good discussion amongst many others), which allowed me to get some clarity in my head. I will share where I got to with you all in this post, which might be a bit on the longer side.

Measuring Developer Productivity = Transaction Cost

Developer productivity is extremely difficult to measure; lines of code, story points, etc all fail to really measure it. But what many people can align on is that you can measure toil – the work that does not add value in the SDLC. One good measure for toil is the transaction cost of code (see more on that here) – one proxy way to measure this is the time between the code commit and the deployment and validation in production. So if we speed up this feedback cycle we can use that as a first-order proxy for the transaction cost. Let’s use this for this article.

The goal of Transformation is to achieve optimal Transaction cost

One major goal of any DevOps transformation is to improve developer productivity and remove toil. This will speed up the delivery cycle and as a result, likely reduce cost. If we keep or improve quality standards along the way we are scoring some major goals for the organisation.

The optimal transaction cost is a theoretical construct – it represents the minimum possible time and effort it could take to deploy and validate code in production. All the manual steps like manual testing, approvals, deployments, and infrastructure changes increase the cost above the minimum transaction cost. Automated but not optimised steps like unnecessary scans or build processes also increase the transaction cost. You can assume that we will never achieve the optimal transaction cost as the incremental cost to improve transaction costs further become uneconomic at some stage. Transaction cost improvements as part of transformations usually follow an asymptotic curve – or the law of diminishing returns.

Optimal Transaction Cost is a function of architecture and process/governance

So what determines the optimal transaction cost for an organisation. Well first of all the optimal transaction cost is not determined organisation wide. The technologies in use and the architecture are factors that differ across teams in an organisation. It’s easy enough to see if you think that a packaged software application likely compiles in minutes, a custom app in seconds, and serverless functions not at all. Clearly, this will make a difference in the transaction cost that we can achieve. But it is not technology and architecture alone that determines the optimal transaction cost per application. The processes and governance in place across the organisation will play the other major role in determining the optimal transaction cost you can achieve as a team.

You might notice that I consider architecture and governance/process as static in the calculation of optimal transaction cost. I do this because I believe transformations to be first and foremost something that teams drive – if you saw my talk at DOES 2022 I speak about the “choose your own adventure DevOps transformations” of teams that you need to guide if you want to transform whole organisations. I will talk about how to elevate the game across the organisation in the next section. But before I do that let’s look at what team-driven transformations then look like.

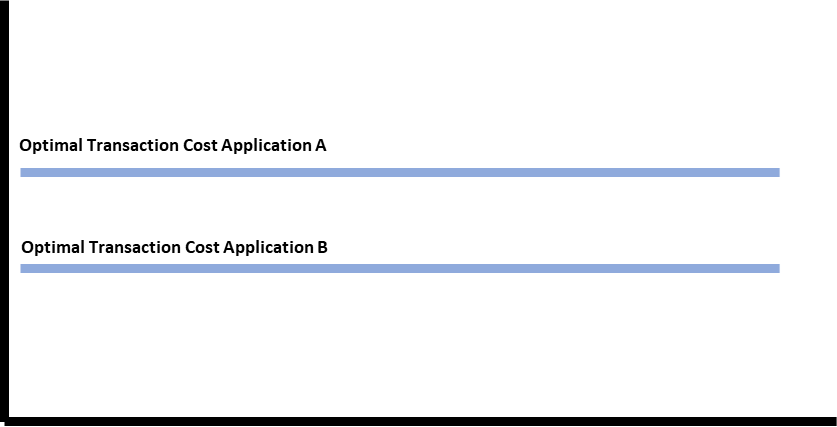

This graph shows two applications one being a larger packaged software, and the other being a smaller custom application. The optimal transaction costs are different as mentioned.

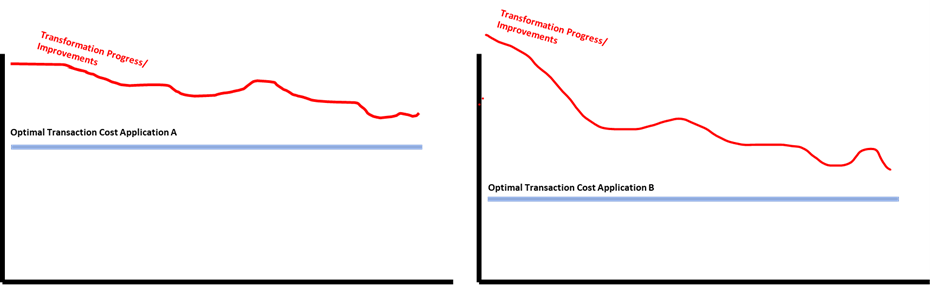

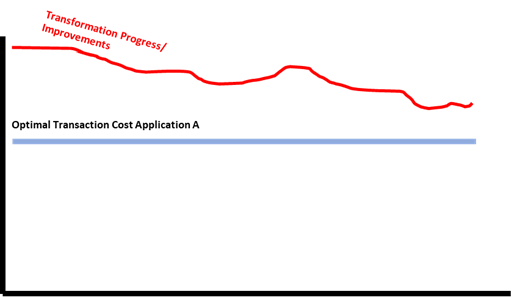

Here you can see how each team is making progress. It’s not linear, and it’s not always making it better, but overall the teams are getting closer to the optimal transaction cost. As I said before it’s not expected for them to ever achieve it and there are other things they are improving along the way too (like quality standards or effectiveness of business experiments).

Transformation progress is achieved through 3 attack angles

Now that we have done the groundwork, let’s talk about the business of transformation. With all this in mind, we can better explain what we are trying to achieve and how to measure it. Let’s assume we found a way to measure transaction costs by either implementing some kind of delivery telemetry or by using a less tool-focused approach like value stream mapping. We then have three different “attack angles” for our transformation:

  1. Achieve optimal transaction cost through automation and streamlining
  2. Improve optimal transaction cost by changing the process/governance across the portfolio
  3. Improve optimal transaction cost by changing the architecture

Let’s go through them in more detail.

Achieve optimal transaction cost through automation and streamlining

This is the team-level transformation where much of the transformation energy needs to be. Teams need to look at their context (perhaps create a value stream map) and identify two things: The areas they can improve themselves and the higher-order constraints that need to be solved outside their team. And then they need to get on with the first while making sure that the second is appropriately prioritised at the organisational level. At this level, we will increase test automation, build infrastructure automation and improve the deployment process among other things. This is very much what I showed in the earlier graph.

  1. Improve optimal transaction cost by changing the process/governance across the portfolio

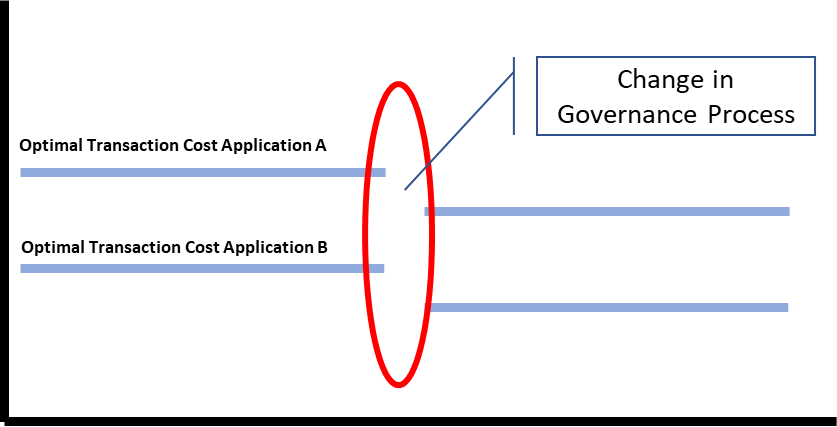

Even if everything is fully automated there is still a process of governance to go through – often “hoops” and “red tape” can materially add to the transaction cost and need to be reviewed to see what still adds value and what is “toil”. Given process and governance is usually company-wide, the process cannot be optimised for each application. This means that even if there is a multi-speed model (and there should be if you followed the logic of this post), each speed will still have to cater to the slowest mover in the category. As application uplift their capability, the process and governance need to evolve at the same time. But changes to the governance process can improve the optimal transaction for many applications making it a very powerful but difficult change.

  1. Improve optimal transaction cost by changing the architecture

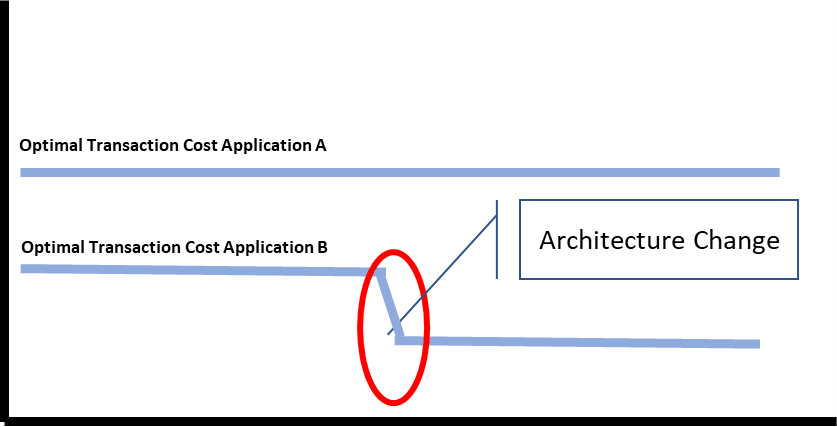

The optimal transaction cost for a specific technology is determined by the level of automation and the achievable speed – as mentioned this is different for example for a small custom app vs a large packaged application. The level of dependencies in the architecture will be another determining factor. So how can we push ourselves to the next level? By changing the architecture – either through decoupling or by transitioning to a different technology. Once you change to a new transaction cost level, there might be new things to do regarding automation and streamlining processes, and new options regarding process and governance might become possible. From here on in it is in progressive iterations that progress is made.

Interactions between 2 and 3 – it’s an iterative process

I think it is obvious that these three attack angles happen in all permutations, parrel or sequential and once you have made improvements along one of those angles new opportunities arise along another. So you need to keep working on your transformation at both the team and organisational level and use a transformation “compass” like a balanced scorecard (see more below and here) or other guidance to keep pushing the transformation forward. Just keep in mind that you need to have an economic framework to guide you – at some stage before you reach the ideal transaction cost you will likely encounter a plateau from which there is no economically sensible next step. Don’t worry – this will change again in no time as the environment around you changes and new opportunities and challenges arise. Personally, I have encountered such plateaus at the team level but never at the organisational level, there is always something beneficial to improve.

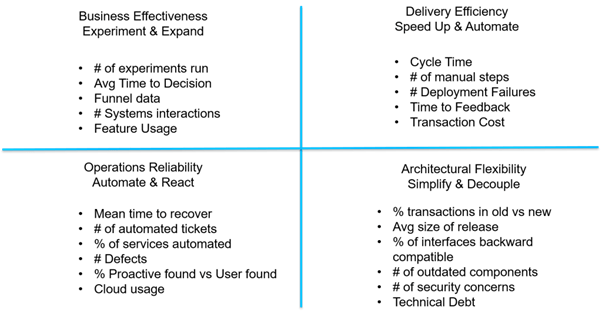

When I talk about transformation I usually use a balanced scorecard approach and clearly the perspective described in this post predominantly sits in the development efficiency quadrant. It is a very important quadrant but not the only dimension you want to cover in your transformation. I will explore the other quadrants in due time in other blog posts.

By the way for a fantastic story about improving the top left quadrant check out Fernando’s Adidas story at DOES 2022.
